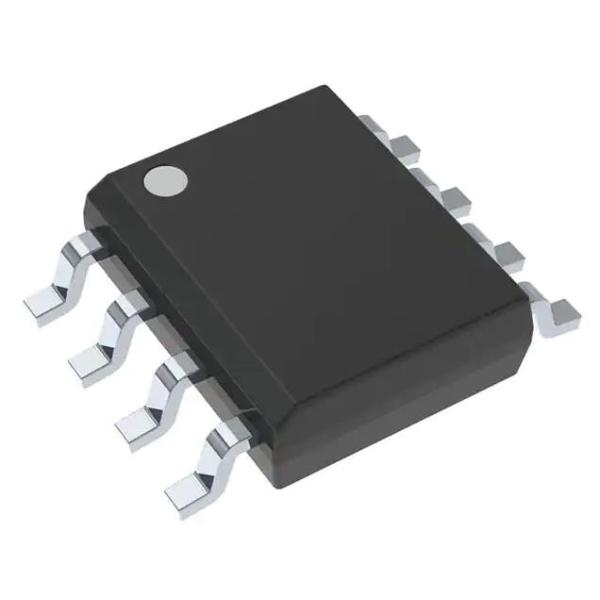

TCAN1051VDRQ1 Integrated Circuit IC Chip Transceiver Half 1/1 8SOIC

Brand Name : original

Model Number : TCAN1051VDRQ1

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status : Active

Type : Transceiver

Protocol : CANbus

Number of Drivers/Receivers : 1/1

Duplex : Half

Receiver Hysteresis : 120 mV

Data Rate : 2Mbps

Voltage - Supply : 4.5V ~ 5.5V

Contact Now

TCAN1051VDRQ1 Integrated Circuit IC Chip Transceiver Half 1/1 8soic

1/1 Transceiver Half CANbus 8-SOIC

Specifications of TCAN1051VDRQ1

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Interface
Drivers, Receivers, Transceivers
Mfr Texas Instruments
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Type Transceiver
Protocol CANbus
Number of Drivers/Receivers 1/1
Duplex Half
Receiver Hysteresis 120 mV
Data Rate 2Mbps
Voltage - Supply 4.5V ~ 5.5V
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number TCAN1051

Features of TCAN1051VDRQ1

• AEC Q100: Qualified for automotive applications
– Temperature grade 1: -40°C to 125°C, TA
– HBM classification level: ±16 kV
– CDM classification level ±1500 V
• Meets the ISO 11898-2:2016 and
ISO 11898-5:2007 physical layer standards
• Functional Safety-Capable
– Documentation available to aid functional safety system design
• 'Turbo' CAN:
– All devices support classic CAN and 2 MbpsCAN FD (flexible data rate) and "G" options support 5 Mbps
– Short and symmetrical propagation delay timesand fast loop times for enhanced timing margin
– Higher data rates in loaded CAN networks
• EMC performance: supports SAE J2962-2 and IEC62228-3 (up to 500 kbps) without common modechoke
• I/O Voltage range supports 3.3 V and 5 V MCUs
• Ideal passive behavior when unpowered
– Bus and logic terminals are high impedance (noload)
– Power up/down with glitch free operation onbus and RXD output
• Protection features
– IEC ESD protection up to ±15 kV
– Bus Fault protection: ±58 V (non-H variants)and ±70 V (H variants)
– Undervoltage protection on VCC and VIO (Vvariants only) supply terminals
– Driver dominant time out (TXD DTO) - Datarates down to 10 kbps
– Thermal shutdown protection (TSD)
• Receiver common mode input voltage: ±30 V
• Typical loop delay: 110 ns
• Junction temperatures from –55°C to 150°C
• Available in SOIC(8) package and leadlessVSON(8) Package (3.0 mm x 3.0 mm) with improved automated optical inspection (AOI)capability

Applications of TCAN1051VDRQ1

• Automotive and Transportation
• All devices support highly loaded CAN networks
• Heavy machinery ISOBUS applications – ISO 11783

Environmental & Export Classifications of TCAN1051VDRQ1

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

TCAN1051VDRQ1 Integrated Circuit IC Chip Transceiver Half 1/1 8SOIC
