LM53635MQRNLRQ1 Tvs Diode Smd Lm53635mqrnlrq1-Nd Ic Reg Buck 5v 3.5a 22vqfn

Name: LM53635MQRNLRQ1 Tvs Diode Smd Lm53635mqrnlrq1Nd Ic Reg Buck 5v 35a 22vqfn
Brand: original
Price: 1 USD

Brand Name : original

Model Number : LM53635MQRNLRQ1

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status : Active

Function : Step-Down

Output Configuration : Positive

Topology : Buck

Output Type : Fixed

Number of Outputs : 1

Voltage - Input (Min) : 3.9V

Voltage - Input (Max) : 36V

Contact Now

LM53635MQRNLRQ1 Tvs Diode Smd Lm53635mqrnlrq1-Nd Ic Reg Buck 5v 3.5a 22vqfn

Buck Switching Regulator IC Positive Fixed 5V 1 Output 3.5A 22-VFQFN

Specifications of LM53635MQRNLRQ1

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Power Management (PMIC)
	Voltage Regulators - DC DC Switching Regulators
Mfr	Texas Instruments
Series	Automotive, AEC-Q100
Package	Tape & Reel (TR)
Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	3.9V
Voltage - Input (Max)	36V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Current - Output	3.5A
Frequency - Switching	2.1MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	22-VFQFN
Supplier Device Package	22-VQFN-HR (5x4)
Base Product Number	LM53635

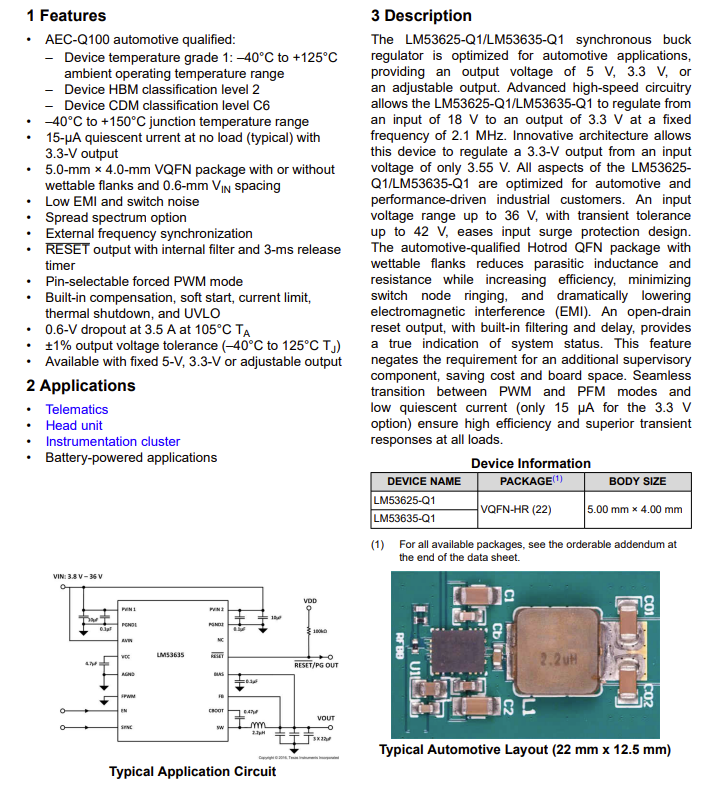

FEATURES of LM53635MQRNLRQ1

• AEC-Q100 automotive qualified:

– Device temperature grade 1: –40°C to +125°C ambient operating temperature range

– Device HBM classification level 2

– Device CDM classification level C6

• –40°C to +150°C junction temperature range

• 15-µA quiescent urrent at no load (typical) with 3.3-V output

• 5.0-mm × 4.0-mm VQFN package with or without wettable flanks and 0.6-mm VIN spacing

• Low EMI and switch noise

• Spread spectrum option

• External frequency synchronization

• RESET output with internal filter and 3-ms release timer

• Pin-selectable forced PWM mode

• Built-in compensation, soft start, current limit, thermal shutdown, and UVLO

• 0.6-V dropout at 3.5 A at 105°C TA

• ±1% output voltage tolerance (–40°C to 125°C TJ )

• Available with fixed 5-V, 3.3-V or adjustable output

Applications of LM53635MQRNLRQ1

• Telematics

• Head unit

• Instrumentation cluster

• Battery-powered applications

Environmental & Export Classifications of LM53635MQRNLRQ1

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
