STPS1L40U Electronic Components Diode 40 V 1A Surface Mount SMB

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

STPS1L40U Electronic Components Diode 40 V 1A Surface Mount SMB

Brand Name : original

Model Number : STPS1L40U

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Technology : Schottky

Schottky : 40 V

Current - Average Rectified (Io) : 1A

Voltage - Forward (Vf) (Max) @ If : 500 mV @ 1 A

Speed : Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr : 35 µA @ 40 V

Operating Temperature - Junction : 150°C (Max)

Package / Case : DO-214AA, SMB

Contact Now

STPS1L40U Electronic Components Diode 40 V 1A Surface Mount SMB

Specifications of STPS1L40U

TYPE DESCRIPTION
Category Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
Mfr STMicroelectronics
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 35 µA @ 40 V
Capacitance @ Vr, F -
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package SMB
Operating Temperature - Junction 150°C (Max)
Base Product Number STPS1



Features of STPS1L40U


• Very small conduction losses
• Negligible switching losses
• Low forward voltage drop
• Surface mount miniature packages
• Avalanche rated
• ECOPACK2 compliant

Applications of STPS1L40U


• Reverse polarity protection
• Set-top box power supply
• TV power supply
• Battery charger


Environmental & Export Classifications of STPS1L40U

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080


STPS1L40U Electronic Components Diode 40 V 1A Surface Mount SMB


Best STPS1L40U Electronic Components Diode 40 V 1A Surface Mount SMB wholesale

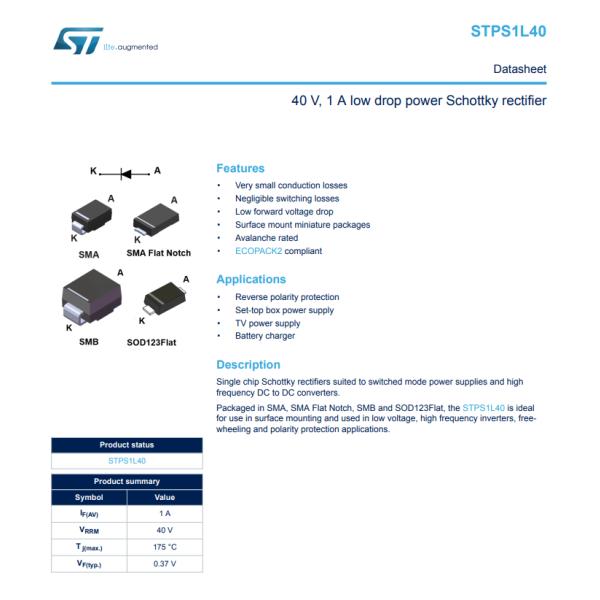

STPS1L40U Electronic Components Diode 40 V 1A Surface Mount SMB Images
