ESD7181MUT5G 35V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 2-X3DFN

Brand Name : original

Model Number : ESD7181MUT5G

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Bidirectional Channels : 1

Voltage - Reverse Standoff (Typ) : 18.5V (Max)

Voltage - Breakdown (Min) : 20.5V

Voltage - Clamping (Max) @ Ipp : 35V (Typ)

Current - Peak Pulse (10/1000µs) : 1A (8/20µs)

Power Line Protection : No

Applications : RF Antenna

Capacitance @ Frequency : 0.3pF @ 1MHz

Contact Now

ESD7181MUT5G 35V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 2-X3DFN

Specifications of ESD7181MUT5G

TYPE DESCRIPTION
Category Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
Mfr onsemi
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 18.5V (Max)
Voltage - Breakdown (Min) 20.5V
Voltage - Clamping (Max) @ Ipp 35V (Typ)
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse -
Power Line Protection No
Applications RF Antenna
Capacitance @ Frequency 0.3pF @ 1MHz
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package 2-X3DFN (0.6x0.3) (0201)
Base Product Number ESD7181

Features of ESD7181MUT5G


• Low Capacitance 0.3 pF (Typical)
• Low Clamping Voltage
• Small Body Outline Dimensions: (0.62 x 0.32 mm) − 0201
• Low Body Height: 0.3 mm
• Working Voltage: ±18.5 V
• Low Leakage < 1 nA (Typical)
• Low Insertion Loss
• Low Dynamic Resistance: < 1
• IEC61000−4−2 Level 4 ESD Protection
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications of ESD7181MUT5G


• RF Signal ESD Protection
• Wireless Charger
• RF Switching, PA, and Antenna ESD Protection
• Near Field Communications


Environmental & Export Classifications of ESD7181MUT5G

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080


ESD7181MUT5G 35V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 2-X3DFN


Best ESD7181MUT5G 35V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 2-X3DFN wholesale

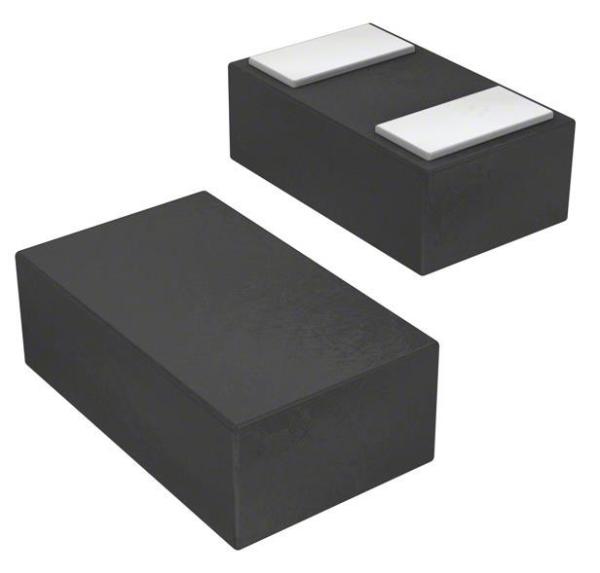

ESD7181MUT5G 35V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 2-X3DFN Images
