CDBZC0130L-HF Diode 30 V 100mA Surface Mount 0201/DFN0603

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

CDBZC0130L-HF Diode 30 V 100mA Surface Mount 0201/DFN0603

Brand Name : original

Model Number : CDBZC0130L-HF

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Technology : Schottky

Voltage - DC Reverse (Vr) (Max) : 30 V

Current - Average Rectified (Io) : 100mA

Voltage - Forward (Vf) (Max) @ If : 370 mV @ 10 mA

Speed : Small Signal =< 200mA (Io), Any Speed

Current - Reverse Leakage @ Vr : 7 µA @ 10 V

Operating Temperature - Junction : -40°C ~ 125°C

Capacitance @ Vr, F : -

Contact Now

CDBZC0130L-HF Diode 30 V 100mA Surface Mount 0201/DFN0603

Specifications of CDBZC0130L-HF

TYPE DESCRIPTION
Category Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
Mfr Comchip Technology
Series Automotive, AEC-Q101
Package Tape & Reel (TR)
Cut Tape (CT)
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 370 mV @ 10 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 7 µA @ 10 V
Capacitance @ Vr, F -
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201/DFN0603
Operating Temperature - Junction -40°C ~ 125°C
Base Product Number CDBZC0130


Features of CDBZC0130L-HF

- Low forward voltage.
- Ultra small mold type.


Descriptions of CDBZC0130L-HF


- Case: 0201/DFN0603 package, molded plastic.
- Terminals: Gold plated, solderable per MIL-STD-750, method 2026.
- Mounting position: Any
- Polarity: Color band denotes cathode end.
- Weight: 0.0004 grams(approx.).

Environmental & Export Classifications of CDBZC0130L-HF

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070


CDBZC0130L-HF Diode 30 V 100mA Surface Mount 0201/DFN0603


Best CDBZC0130L-HF Diode 30 V 100mA Surface Mount 0201/DFN0603 wholesale

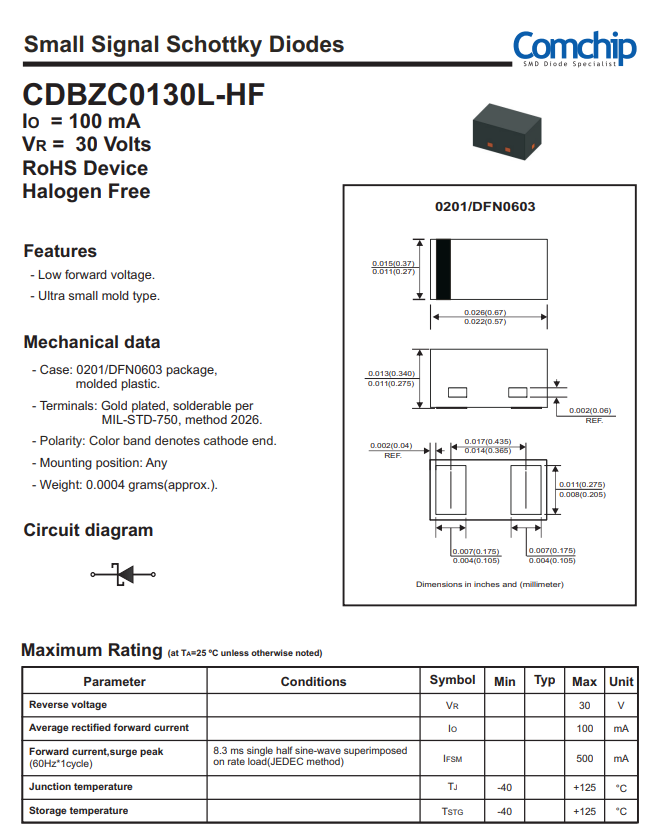

CDBZC0130L-HF Diode 30 V 100mA Surface Mount 0201/DFN0603 Images
