MP24943DN-LF-Z DC DC Switching Regulator IC With Adjustable 0.8V 1 Output 3A 8-SOIC

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

MP24943DN-LF-Z DC DC Switching Regulator IC With Adjustable 0.8V 1 Output 3A 8-SOIC

Brand Name : original

Model Number : XA7A15T-1CPG236Q

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Function : Step-Down

Number of Outputs : 1

Voltage - Input (Min) : 4.5V

Voltage - Input (Max) : 55V

Voltage - Output (Min/Fixed) : 0.8V

Voltage - Output (Max) : 45V

Current - Output : 3A

Frequency - Switching : 100kHz

Contact Now

MP24943DN-LF-Z Switching Regulator IC With Adjustable 0.8V 1 Output 3A 8-SOIC

IC REG BUCK ADJUSTABLE 3A 8SOIC

Specifications of MP24943DN-LF-Z

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Voltage Regulators - DC DC Switching Regulators
Mfr Monolithic Power Systems Inc.
Series -
Package Tape & Reel (TR)
Product Status Active
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 55V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 45V
Current - Output 3A
Frequency - Switching 100kHz
Synchronous Rectifier No
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package 8-SOICE
Base Product Number MP24943


Features of MP24943DN-LF-Z


* Wide 4.5V to 55V Operating Input Range
* Programmable Output Over-Voltage Protection
* Output Adjustable from 0.8V to 45V
* 0.15Ω Internal Power MOSFET Switch
* Stable with Low ESR Output Ceramic Capacitors
* Fixed 100kHz Frequency
* Low EMI Signature
* Thermal Shutdown
* Cycle-by-Cycle Over-Current Protection
* Available in SOIC8 and SOIC8E Packages

Applications of MP24943DN-LF-Z


* Automotive GPS
* Automotive Entertainment
* Power Supply for Linear Chargers

Environmental & Export Classifications of MP24943DN-LF-Z

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

MP24943DN-LF-Z DC DC Switching Regulator IC With Adjustable 0.8V 1 Output 3A 8-SOIC



Product Tags:

MP24943DN-LF-Z



8-SOIC DC DC Switching Regulator IC



MP24943DN-LF-Z Switching Regulator IC


Best MP24943DN-LF-Z DC DC Switching Regulator IC With Adjustable 0.8V 1 Output 3A 8-SOIC wholesale

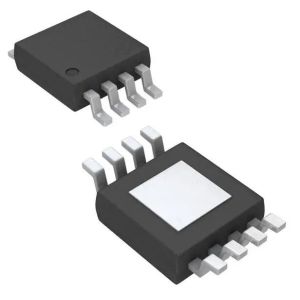

MP24943DN-LF-Z DC DC Switching Regulator IC With Adjustable 0.8V 1 Output 3A 8-SOIC Images
